Description

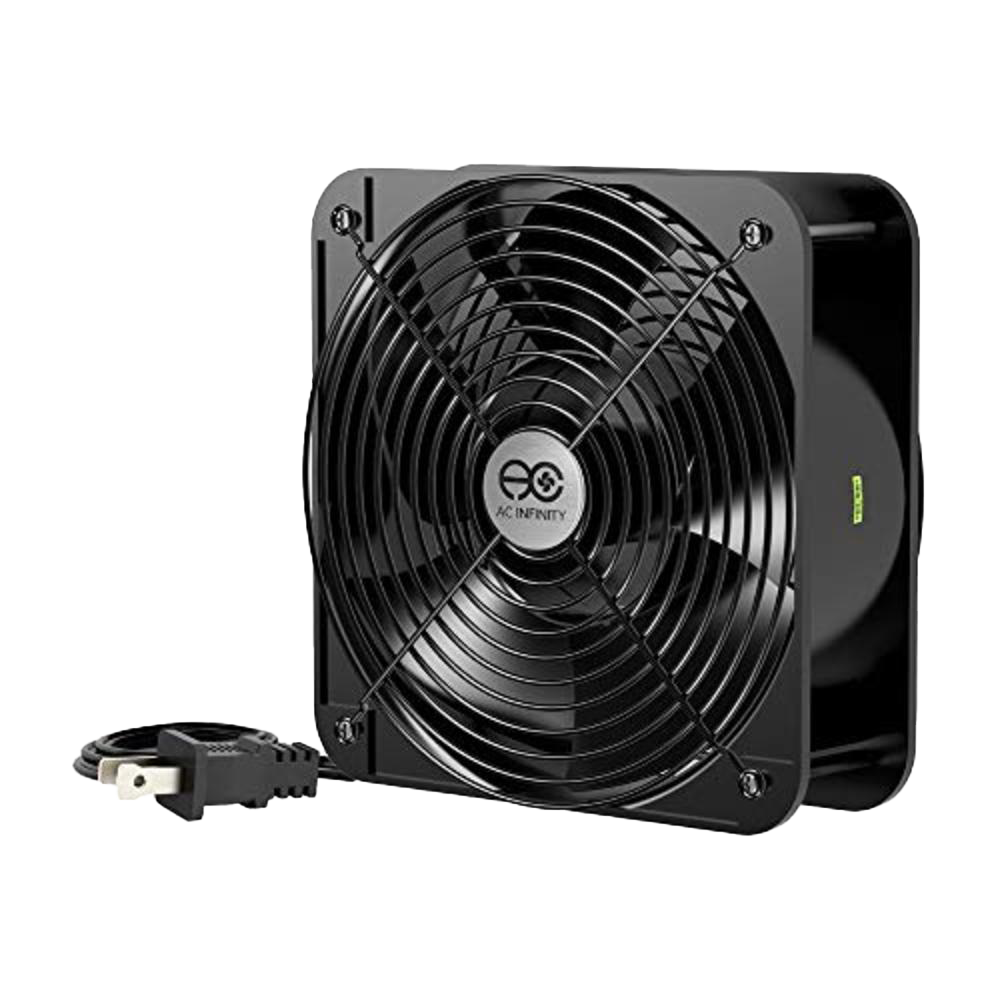

AXIAL 2060 Fan Kit – Includes a MUFFIN 120V AC FAN and a FAN SPEED CONTROLLER

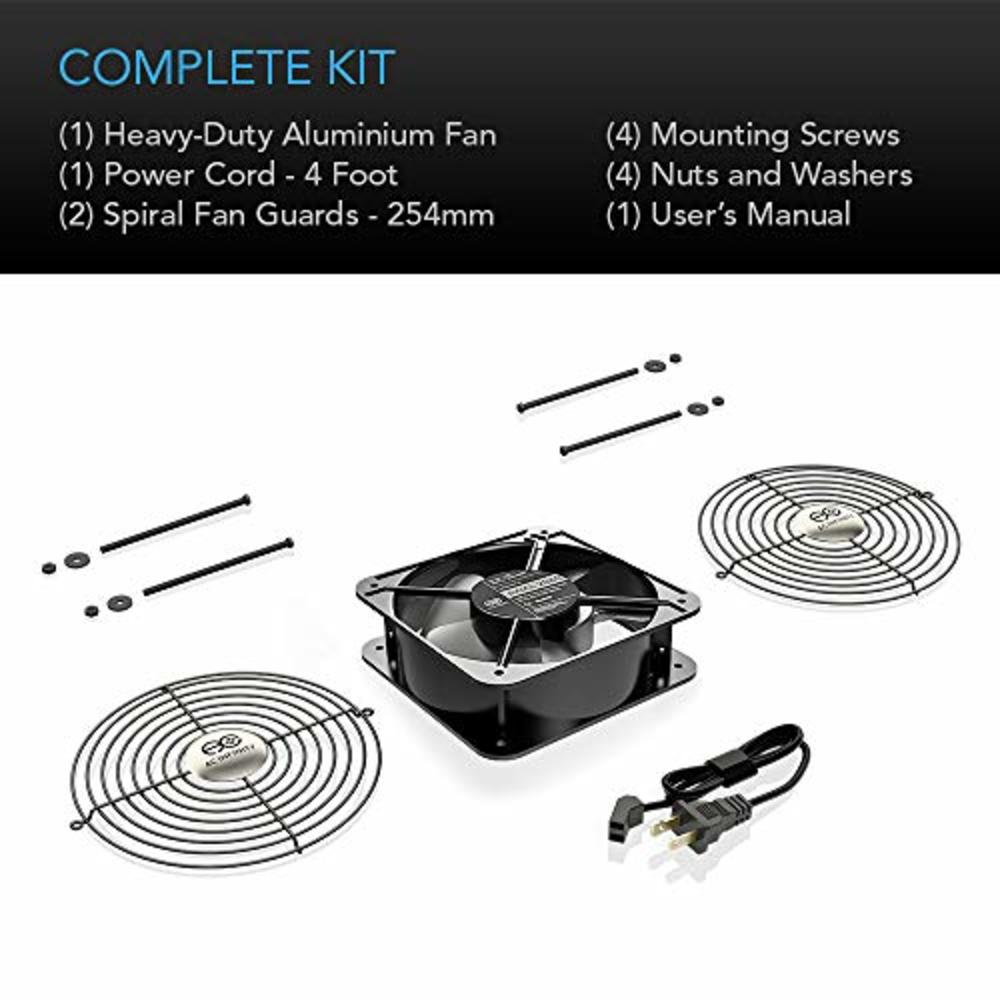

• Includes a heavy-duty aluminum fan with power plug cord, two fan guards, a mounting screw set, and a variable speed controller.
• Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.

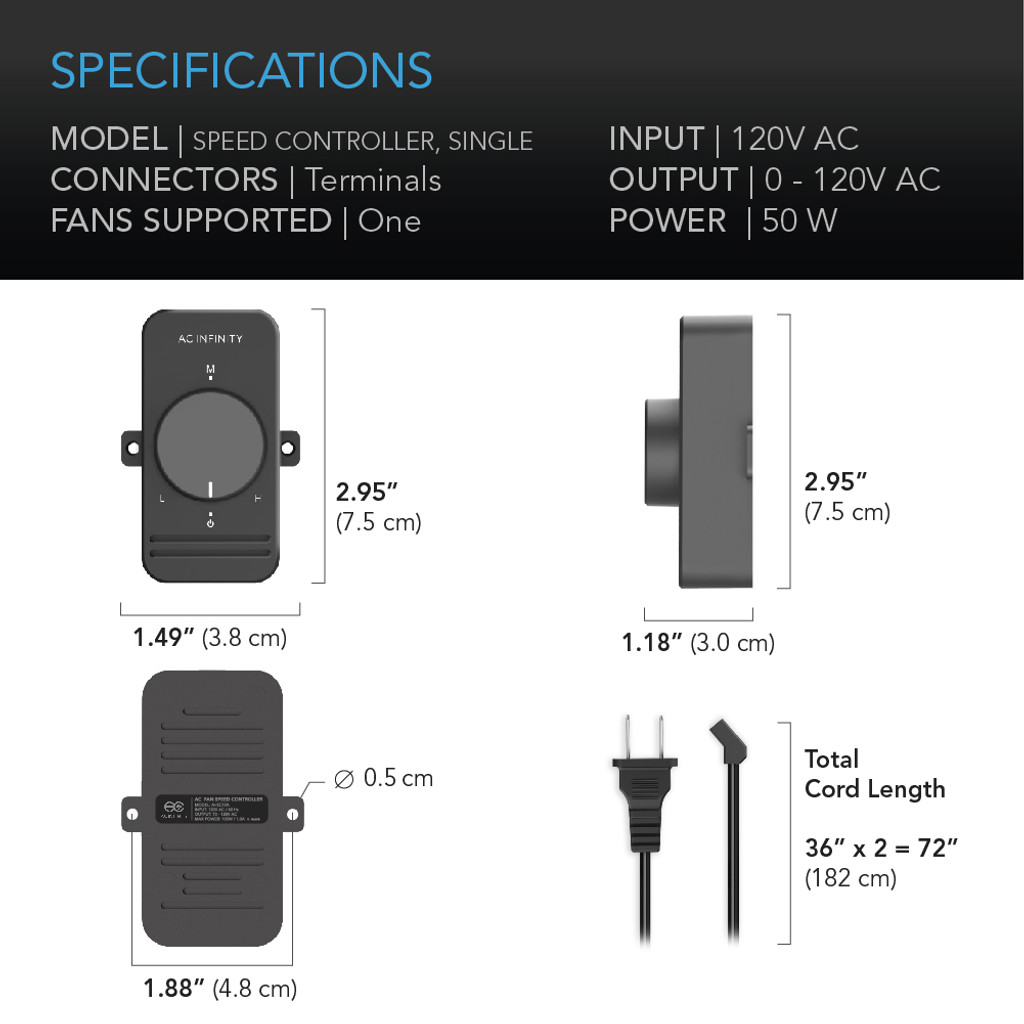

• Adjust your fan’s speed to optimize the airflow and noise for your application.
• High Speed: This model is designed to maximize airflow.

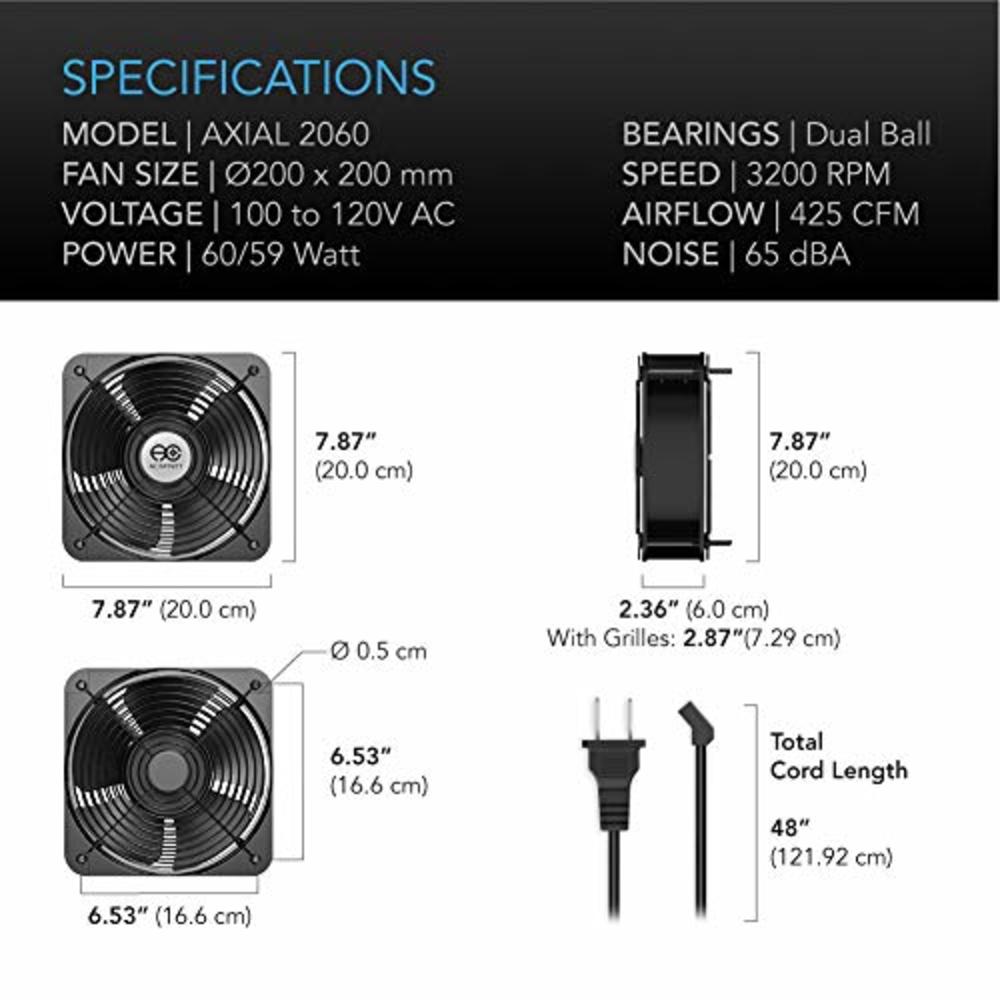

• 200 x 200 x 60 mm (7.87 x 7.87 x 2.36 in.) | 100 to 120V AC | Max Airflow: 425 CFM | Max Noise Level: 65 dBA | Max Speed: 3200 RPM

PRODUCT DESCRIPTION

The heavy duty axial fan kit is designed for ease of use. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4 foot power cord that can be easily attached to the fan’s metal terminals and allows it to be powered through a wall outlet. The variable speed fan controller allows you to set the speed at which you want the air to flow. Also includes two 200 millimeter metal fan guards and a mounting screw set.

HEAVY DUTY CONSTRUCTION

The fan’s housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability.  Impedance protected motors contain windings that has a higher resistance to heat during a rotor lock. Containing long life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.

APPLICATIONS

This high-speed fan is suitable in applications where maximizing airflow is the primary objective.
